|| C.I.E. MD2400 ||
C.I.E. MD2400/4E analogue, addressable fire alarm control panel generation 3
- Modular C.I.E. with a maximum capacity of 4 loops
- Maximum 126 adresses per loop
- Dimensions housing (H x W x D) article 245040XP1: 600 x 600 x 200 mm
- Dimensions housing (H x W x D) article 245040XP2: 800 x 600 x 250 mm
- Dimensions housing (H x W x D) article 245040XP2A: (800+400) x 600 x 250 mm
EN54-13 CERTIFICATE : MD2400: B-9072-FD-954
ON ORDER
C.I.E. MD2400/8E analogue, addressable fire alarm control panel generation 3
- Modular C.I.E. with a maximum capacity of 8 loops
- Maximum 126 adresses per loop
- Dimensions housing (H x W x D) article 245080XP2: 800 x 600 x 250 mm
- Dimensions housing (H x W x D) article 245080XP2A: (800+400) x 600 x 250 mm
EN54-13 CERTIFICATE : MD2400: B-9072-FD-954
ON ORDER
C.I.E. MD2400/16E analogue, addressable fire alarm control panel generation 3
- Modular C.I.E. with a maximum capacity of 16 loops
- Maximum 126 adresses per loop
- Dimensions housing (H x W x D) article 245160XP4: 1200 x 800 x 300 mm
- Dimensions housing (H x W x D) article 245160XP4B: (1200+600) x 800 x 300 mm
EN54-13 CERTIFICATE : MD2400: B-9072-FD-954
ON ORDER
User's info
Info for the installer
Partner login
TOP
System components
TOP
|| MD2400 operator consoles ||
MD2400 LCD operator console/repeater panel with capacitive touch screen
- Art. 241200 -
- Housing materials: black lacquered metal with 3mm tempered glass front
- Dimensions (H x W x D) : 156 x 220 x 42mm
- Supply voltage : 20Vdc to 28Vdc
- Quiescent current: 40mA@24Vdc
- Alarm current: 55mA@24Vdc
SUITABLE FOR : | MD2400 |
EN54-13 CERTIFICATE : MD2400: B-9072-FD-954
STOCK KEEPING ARTICLE
Info for the installer |

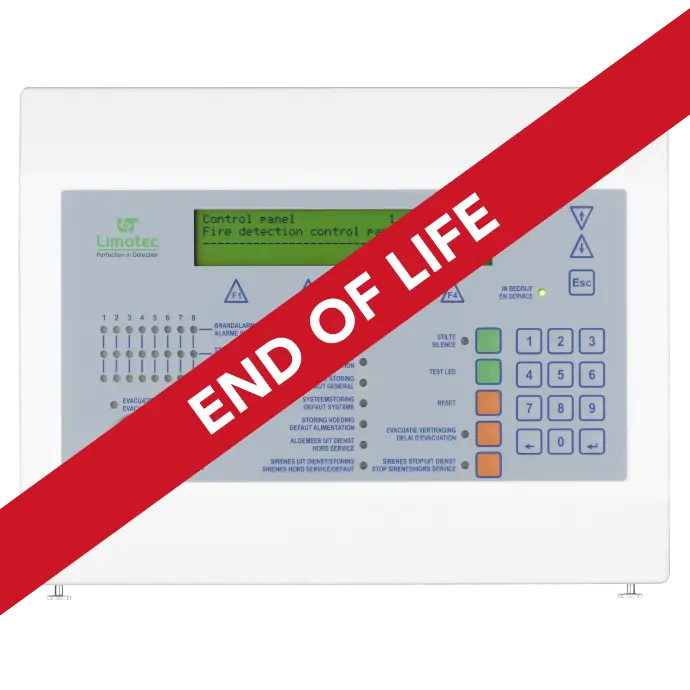

MD2400 operator console with redundancy - Art. 241100NF -
- Dimensions (H x W x D): 253 x 327 x 54mm
- Supply voltage : 27Vdc
- Operating voltage : 5Vdc
- Quiescent current : 60mA
- Alarm current : 125mA
EN54-13 CERTIFICATE : MD2400: B-9072-FD-954
STOCK KEEPING ARTICLE
Info for the installer |
MD2400 operator console
- Art. 241102NF -
- Dimensions (H x W x D): 253 x 327 x 54mm
- Supply voltage : 27Vdc
- Operating voltage : 5Vdc
- Quiescent current : 60mA
- Alarm current : 125mA
EN54-13 CERTIFICATE : MD2400: B-9072-FD-954
STOCK KEEPING ARTICLE
Info for the installer |
User's info
Partner login
Wiring diagrams
MD2400 console without redundancy | NL | FR |
MD2400 console with redundancy | NL | FR |
Wiring diagrams LCD operator console
MD2400 LCD operator console | NL | FR |
MD2400 LCD operator console - control board | NL | FR |
|| MD2400 repeater panels ||
MD2400 repeater panel with redundancy
- Art.241121 -
- Dimensions (H x W x D): 253 x 327 x 54mm
- Supply voltage : 27Vdc
- Operating voltage : 5Vdc
- Quiescent current : 50mA
- Alarm current : 130mA
STOCK KEEPING ARTICLE
END-OF-LIFE: still available until end of stock
Info for the installer |
MD2400 repeater panel - Art.241123 -
- Dimensions (H x W x D): 253 x 327 x 54mm
- Supply voltage : 27Vdc
- Operating voltage : 5Vdc
- Quiescent current : 50mA
- Alarm current : 130mA
STOCK KEEPING ARTICLE
END-OF-LIFE: still available until end of stock
Info for the installer |
User's info
Partner login
|| MD2400 transmitters ||
MD2400 SIA transmitter over IP in metal housing - Art. SIA003B1_V2 -
- Dimensions (H x W x D): 252 x 250 x 81 mm
- Supply voltage : 21 – 28Vdc
- Current consumption : 115mA@26Vdc
- Transmission mode : IP
- Communication protocol: SIA (level 1 to 3) reference DC-03-1990.01 (R2003.10)
- Connections transmission module : connector RJ45 for CAT5 cable (Ethernet connecton)
STOCK KEEPING ARTICLE
MD2400 SIA transmitter over IP+GPRS in metal housing - Art. SIA004B1_V2 -
- Dimensions (H x W x D): 252 x 250 x 81 mm
- Supply voltage : 21 – 28Vdc
- Current consumption : 135mA@26Vdc
- Transmission mode: IP, IP+GPR of GPRS
- Frequency range GSM/GPRS
– Dual band GSM: 900/1800MHZ
– Dual band UMTS: 900/2100MHZ - Communication protocol: SIA (level 1 to 3) reference DC-03-1990.01 (R2003.10)
- Connections transmission module:
– RJ45 connector for CAT5 cable (Ethernet connection)
– SMA connector for connection of the GPRS/3G antenna
STOCK KEEPING ARTICLE
|| MD2400 interfaces for external connections ||
MD2400 Embedded Web Server
- Art. EWS003A -
- User interface in the form of a graphical software for PC
- Installed on a maintenance-free Embedded PC and provided via an internet browser
- The Embedded PC is supplied with a power supply 230Vac/12V 3A DC and connected to the local computer network
- 1 hardware basic licence via WIBY key for up to 3 C.I.E. MD2400L and/or C.I.E. MD2400 included
- The administrator of the system can create several users
ON ORDER
MD2400 interface ESPA 4.4.4 prototcol
- Art. 243300 -
- Interface for the connection to a paging system or to a DECT system
- Mounting on a standard 35mm DIN rail
- Protocol: ESPA 4.4.4 compliant with ISO1745 standard
- Transmission: Standard: RS232 9600baud No Parity – 8 bit – 1 stop bit
- Power supply: 24Vdc maximum 100mA
STOCK KEEPING ARTICLE
MD2400 SIA modem interface
- Art. 243370 -
- SIA modem interface for monitoring station
- Number of monitoring stations: maximum 2
- Number of account numbers: maximum two 4-digit numbers
- Supply voltage : 27Vdc
- Current consumption : 55mA@27Vdc
- Connection: null-modem cable between SIA interface and computer
STOCK KEEPING ARTICLE
MD2400 universal UDP interface for connection to BMS - Art. 244391 -
- Universal UDP interface for connection to Building Management System
- Supply voltage: 12Vdc to 28,5Vdc (nominal 24Vdc)
- Current consumption: 65mA@24Vdc
- Peak consumption: up to 85mA
- Dimensions (H x W x D) : 76 x 127 x 50mm (excluding Ethernet connector)
END-OF-LIFE : NIET MEER LEVERBAAR !
Partner login
MD2400 universal interface for external connections (UDP-EWS-MODBUS)
- Art. 244391V1-2 -
- Universal interface for connexion to a building management system via UDP or Modbus or for connecting to the MD2400 Embedded Web Server for graphics software (EWS).
- Supply voltage: 12Vdc to 28,5Vdc (nominal 24Vdc)
- Current consumption: 65mA@24Vdc
- Peak consumption: up to 85mA
- Dimensions (H x W x D) : 76 x 127 x 50mm (excluding Ethernet connector)
STOCK KEEPING ARTICLE
|| MD2400 options ||
MD2400 fibre optic convertor RTR – Single Mode ST - Art. 243300 -
- Dimension (H x W x D): 96 x 99 x 25mm
- Optical fibre type: Single Mode (8/125µm or 9/125µm)
- Supply voltage: 12 – 48Vdc
- Current consumption: 62,5mA@24Vdc
- Wavelength: 1310nm
- Operating temperature: -20°C tot +70°C
- Humidity: 5% to 95% RH (no condensation)
STOCK KEEPING ARTICLE
MD2400 fibre optic convertor RTR – Multi Mode ST - Art. 243304 -
- Dimension (H x W x D): 96 x 99 x 25mm
- Optical fibre type: Multi Mode (50/125µm of 62/125µm)
- Supply voltage: 12 – 48Vdc
- Current consumption: 62,5mA@24Vdc
- Wavelength: 820nm
- Operating temperature: -20°C tot +70°C
- Humidity: 5% to 95% RH (no condensation)
STOCK KEEPING ARTICLE
